Half-Scale Build #103

There's sufficient room to store battery-packs in the overhead, this showing how they address the respective ESC. Opted for a top-mounted installation to raise connections clear of the propeller, which now sweeps the area below the drone. The controller, radio receiver and GPS aerial will also be fixed topside (though in the past we've flown them inverted on the underside too).

To secure each ESC I've again used a strip of double-sided tape, reinforced by a pair of cable-ties. These techniques are borrowed from previous builds, the evolution toward a beta-product being a process of continuous improvement. Weight-wise we are up to 11.30kg (or 25lb) with just the Pixhawk controller and propellers remaining to be fitted.

This means we need over 70% thrust just to get airborne. This is marginal and might mean that all we'll get to show is an animated window-display... anyone got Selfridges number?

Half-Scale Build #102

There is so little thread on these motors to engage with, beside the fact 3.0mm bolts are decidedly fiddly anyway, that the easiest solution is to drive the bolts in from the far side. To do so without impacting the windings I've reduced the shanks to 33mm, which in turn means they've probably cross-threaded the bolt-holes on the base of the motor. At the same time I've had to pritt-stick a washer in place to ensure the axle protruding from the base clears the frame. All in all a parlour game which keeps a whole family amused throughout the whole of Boxing Day.

Does though demonstrate the versatility of the design, because from hereon in we can simply flip the drone over to proceed right-foot forward. Alternatively we can leave it as intended and leave the motors mounted inverted on the underside of the airframe. Either way it looks like plastic pushes the envelope when it comes to rigidity, which is why we shall retain an alloy backup for the perimeter sections at least.

I've decided to leave the full length of the cable intact, not least because it saves re-soldering the ends... the cable-tidy was made by wrapping the excess length around a length of double-sided tape stuck to the frame.

A feature of drones which helps all of this is that ~ with computer control ~ it doesn't matter if the motors are not mounted perfectly level. Any tendency to wander due an offset in their level will be remedied by adjusting the RPM of the remaining motors to restore a level hover... something the pilot would have had to do in Christmases past.

Polar Express

Hate at first sight when it came to this motor, mainly because its axle extends beyond the base requiring a shim like this and because there is insufficient depth of thread to play with before the bolts impact the windings. Neither an issue with the U13 model a few grades up ~ this a peril of buying online, its bulk returns and the carbon emissions that go with it.

Does bring proceedings to a halt as I need to know if Loctite will secure that washer or whether I'll need to shop for superglue... which is not the priority come Christmas Eve. In retrospect I should have opened only one set of packaging so the goods could be swapped for more powerful equipment; but like Scott in the Antarctic we're beyond it, and it's do-or-die with a 24-volt set-up.

Looking ahead therefore I check the weight of the payload viz. completed transporter including mannekin. It comes to 5.90kg or thirteen pounds, which is fairly remarkable for what is practically a two-third scale iteration. At 75% we've theoretically fourteen kilos of thrust, though that's well beyond what you'd want thrust settings to be in the hover. There's still the weight of the drone to consider too, though it should come in well under the payload.

Worst case we'll dump the mannekin, halving the payload at a stroke. We'd all still get the picture knowing the power can be upped. Whichever form of transport we use ~ whether car, aeroplane or all else ~ started off with power that was a fraction of what it would later become. And so now it must be time for old Mr Fezziwig to clear the factory floor, don his best breeches and set the tables for an evening of merriment... and God bless us, one and all.

Half-Scale Build #101

The passenger is secured at the top of the box. In order to fly their heads are shaved, and velcro taped to the crown in a drug-fuelled initiation ceremony in the jungle.

Half-Scale Build #100

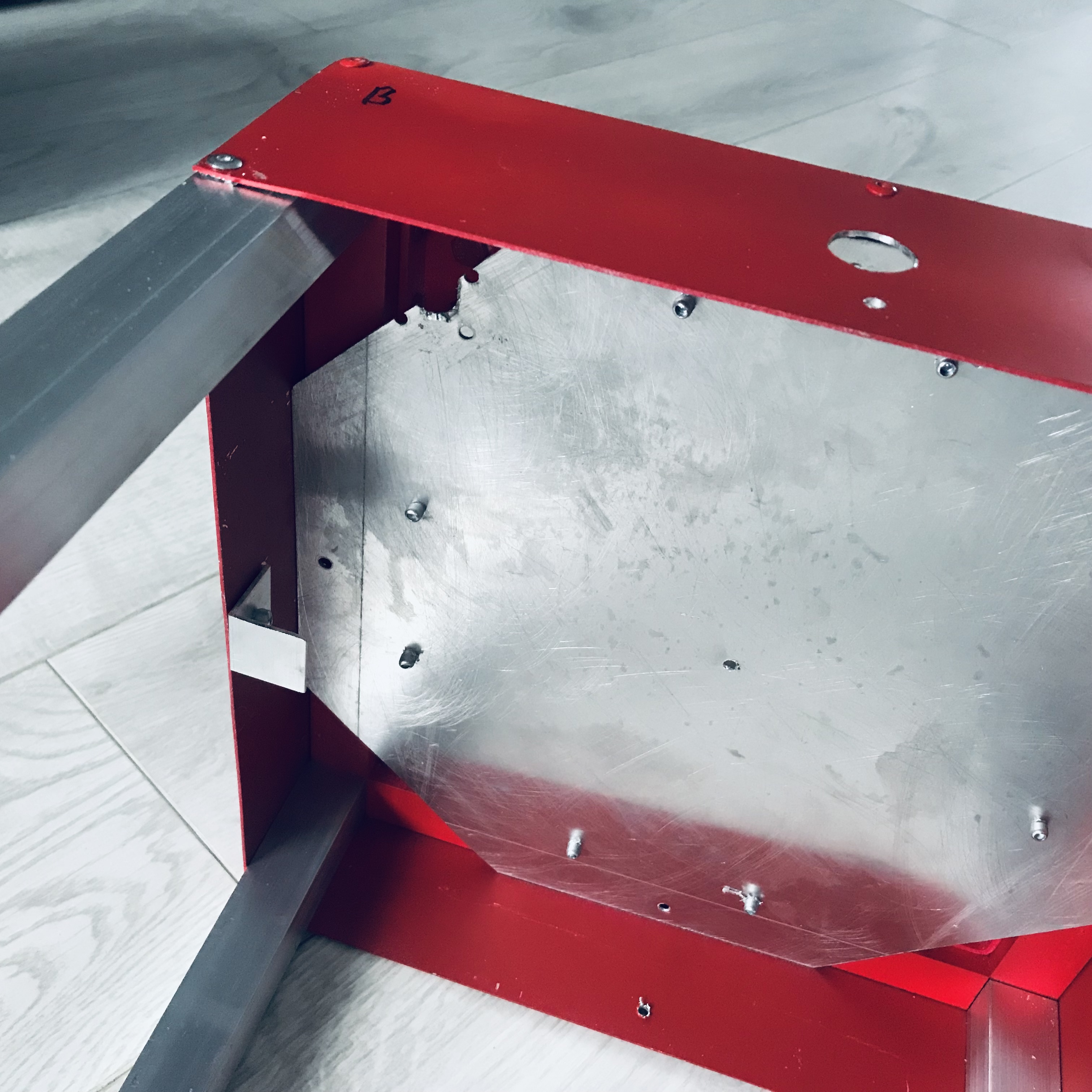

A view of one of the landing rods in place. Advantage of prototyping is learning lessons that are carried forward into the next build: the M5 bolts should have been relieved of their heads prior insertion, so that their uncut ends protrude. Nonetheless the idea of speculative builds like this is to achieve the big picture, the broad outline of a design that looks like it's literally going to be a flyer at whichever scale.

Their means of attachment for instance is probably sub-optimal... pair of brackets, one of which is drilled out to allow the rod to be slid into place and fixed with a wing-nut. We could have riveted plastic conduit clamps to the footwell panels in order to form a guideway. In fact I did order M8 P-clips for precisely this reason, but they proved to be too tight a fit once closed by the pop-rivet.

Previous iterations of the box featured an 'H' arrangement of rods like helicopter skids, but then they need to perform running landings, while VTOLs don't. Principally though, despite the sacrifice of an element of ground-stability the attraction of this fit is that it remains consistent with our design strategy: limiting part count to a bare minimum and inter-operability of parts.

The landing rods are fitted like the arms of the drone above, which they complement. Ensure that brackets are fitted at the correct corners, else otherwise the rods extend from along the wrong side of the frame. The vehicle's arms and feet are arranged left-foot forward because they appear better that way, but don't ask why ~ perhaps they look better the other way to left-handed people?

If you wish to reverse the look, flip the drone other side up prior to fitting the motors.

Half-Scale Build #99

Days you don't feel like doing any of this, and this is one of them. Nonetheless cannot let a day go by without advancing the cause, and a gentle pursuit is the preparation of landing gear. This takes the form of 8mm GRP rods which served well on the earlier build shipped to California. In one end there are 5mm bolts whose heads are removed later and at the other, door-knobs to stop the rods from impaling landing surfaces.

The length of each rod has been reduced from one metre to 30" so as to extend just 6" beyond the outline of the airframe. It would perhaps look better were it to match the length of the drone's cantilevers, but we'll err on the safe side throughout. They'll look nice either way once sprayed red.

Half-Scale Build #98

Devil is truly in the detail and there are days when progress slows to a snail-pace as a variety of different fixes are tried out. In the event ~ apart from putting my back out as I lean over ~ I decide to remove the battery-packs topside to simplify matters. This in turn allows the phone and drone to be close-coupled, and by way of attachment I use a pair of angle-brackets at each corner. One is secured using the 6mm bolt at the end of each cantilever, whilst its opposite number is simply riveted to the framework.

These brackets suit M4 bolts and have to be drilled out to fit an M6. Out in the field they could be attached with nuts and bolts though we'll likely use cable-ties instead. Deceptively strong, they are used as hand-cuffs for unruly passengers; so it won't be the first time they've taken to the skies.

Half-Scale Build #97

Got to get on message, and if you scale this to A4 size it suits our current build. I do four because phone boxes were not designed to fly people ~ with the exception of Doctor Who ~ and had a back where ours does not. In fact the only way you can figure which way is forward is whichever way its passenger is facing, and even that can be changed whilst the air vehicle remains stationary.

It has that advantage over helicopters or eVTOLs like the Jetson ~ one reason we'll be pitching it for video and observation. The typeface is Arial Bold, because we're both.

Half-Scale Build #96

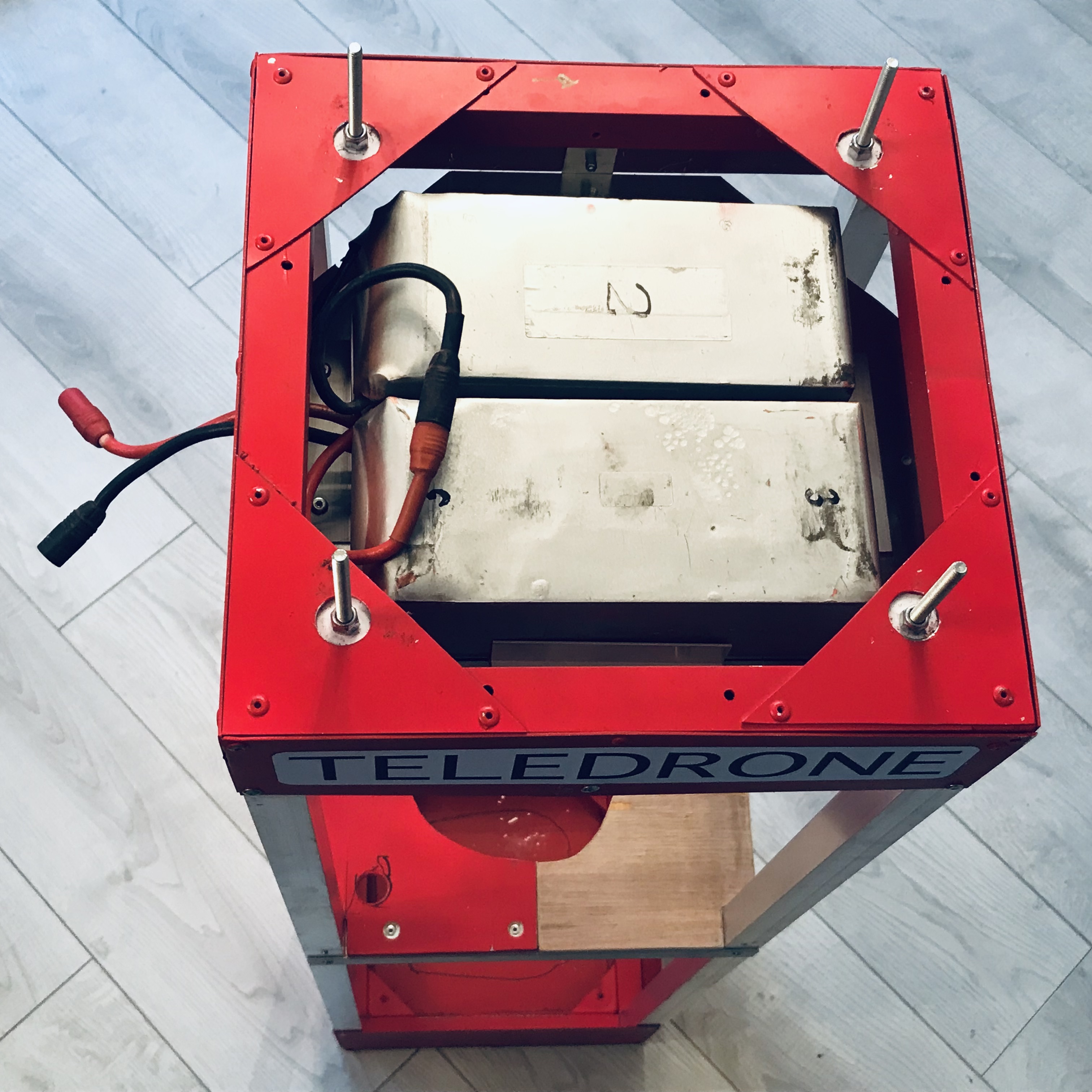

Here's a nice top-view of the battery-bay. Not wanting to waste any precious lengths of extrusion I've used metre lengths for each upright, and the tube-connectors add a further five centimetres to those in terms of height. Though we could fit the standby mannekin in the transporter 'as is' we've selected the unarticulated one for the lunar mission and in fact I'm tempted to call him Neil Armstrong for that reason. I've had to make a cut-out to accommodate the crown of his head within the confines of the bay, and the CAA have kindly provided an exemption from use of the firewall in the event he's dead already. We shall though be providing a baseball cap as a mark of respect.

The battery-bay incidentally is simply supported four-square by brackets along each of the shorter extrusions that you see in the photo. Accordingly it can be removed so we are able to drop the mannekin in place, with him being unable to step inside, love, as Cilla Black was oft known to sing. All four six-inch footwell panels have been riveted to the box prior to all of this, in order to render the space-frame suitably rigid for the handling required.

Battery-packs sit proud of the frame by around a half-inch, so that lugs are required in order to raise the drone clear of the box during the pre-flight manual docking. The gap will be used to route those cables up to each speed-controller (ESC) situated on the adjacent cantilever. We just need to add the TELEDRONE panels round the top-side prior to the airframe going down the line to the paint-shop.

I've omitted both flying-boots and underlay from the base of the transporter, settling for a simple plug that engages with Monty's left foot to secure. He's as unhappy about launching in 'Woodstock' footwear as he is to have no helmet tho' I point out it could be worse. Until recently he'd be flying in the buff, and as it stands he'll still be going commando.

Nothing new either about tailoring safety-cell to pilot like this. F1 driver Nigel Mansell used to need the toes of his shoes cut off to fit inside the cockpit, and I suspect he's not been the only one.

Half-Scale Build #95

We know how to assemble the transporter now, don't we, as it's all been done before during the alloy build? All I would say as you're fetching vaseline from the bathroom is that these three-way tube-connectors are two-part mouldings, and I recommend that those prongs with joins form shorter edges of the box, whilst the solid (seen here with logo on top) support each column.

Half-Scale Build #94

To my knowledge the only vehicles tailored to the pilot's height are space-capsules, F1 racing cars and my drone. Measure your test-pilot with a set-square and standing on whatever might be used as a base in the phone-box, like the leftover foam here. Note too how that resin-gauze repair will ensure that Monty's head won't fall off in flight ~ few people besides Henry VIII would want to see their loved one's head come off at Christmas.

Half-Scale Build #93

Here are the templates in place ready for drilling. You may wish to use a centre-punch on aluminium frames in particular, though I do so to take me back to those metalwork classes at school that I so enjoyed. Though he might not be with us any more, we thank Mr. Powell wherever he may be. Meanwhile back at the ranch I recommend that you warm the plastic frame up if it has overnighted in the garage, to suffer life's slings and arrows (and not least, drill-bits) more readily.

(When I trained to teach pilots in the simulator how to fly jet airliners, my instructor at the time had operated F-16s in Alaska, where cold made the metal switches so brittle that they would snap off at his finger-tips.)

Here too I cracked open a prop to make sure we've sufficient clearance. In case you're wondering too, there's always more clearance between a pair of props if they clear the centre-body, assuming you've used the rule-of-thumb that the centre-body is a third the size of the outer frame.

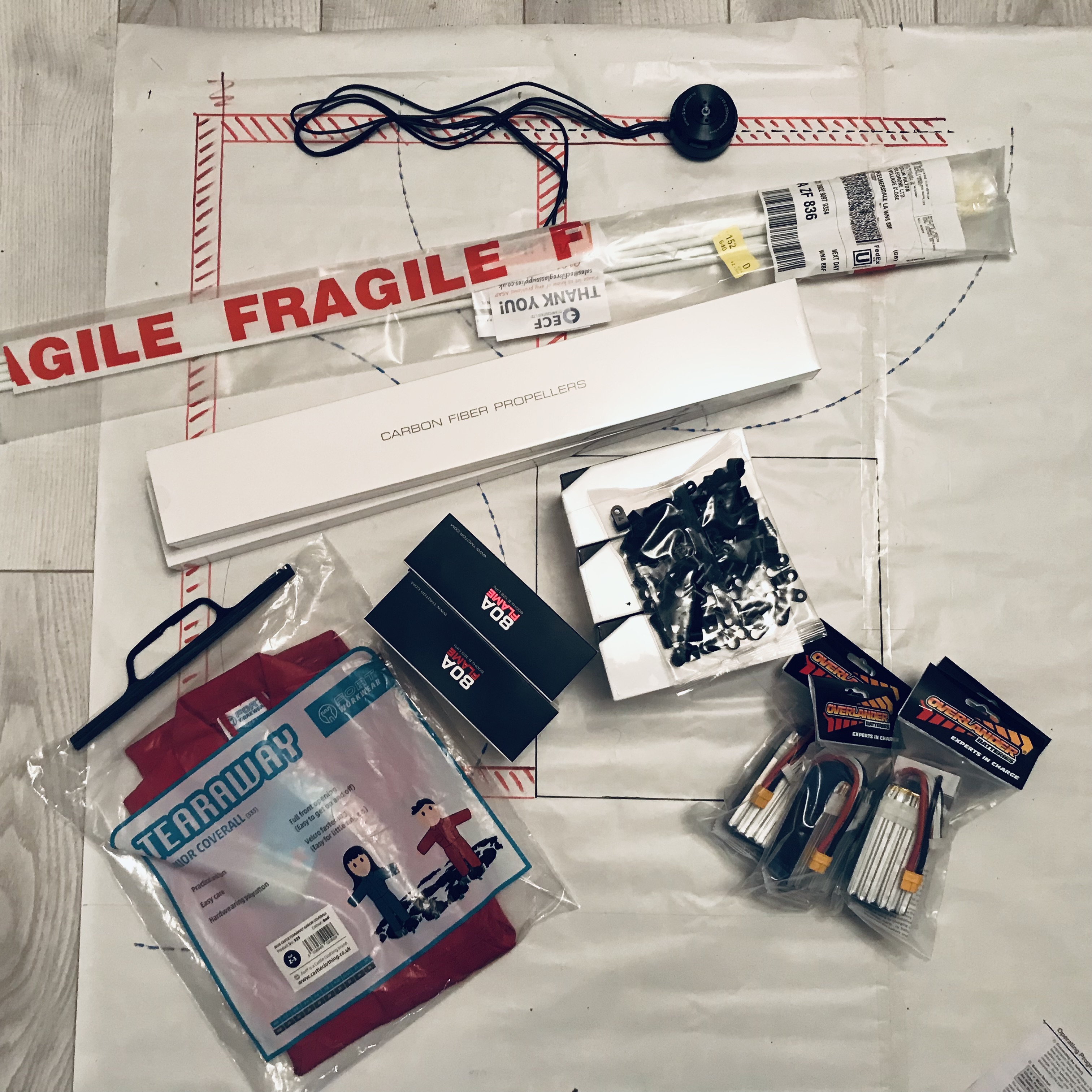

The propellers are lavishly packaged; something we owe a debt of gratitude for to the late Steve Jobs, who insisted every Apple product should be as great a pleasure to unwrap as to use. The propellers come with a velvet sleeve which looks uncannily like a Christmas willy-warmer, albeit for those of us with a 22" member.

Half-Scale Build #92

The easiest way to mount the motors is to create a template in either Word or Pages, and import a JPEG image drawn from the manufacturer's website. Here I've overlain a circle (in red) of the required diameter (30mm) to match the bolt-holes on the base of each motor, and sized the JPEG overlay to suit.

All that remains to do is to cut these templates out and stick them on the airframe in a way that matches the orientation of each motor. In our case we'll mount the motor with the wires facing the nearest cantilever, with two bolts through the airframe and two through the adjacent bracket: using our template to guide the 3.0mm drill-bit.

(Alternatively you may wish to spend £2500 and upwards on a laser-cutter to make a pattern in carbon-fibre sheet that can be fixed to the airframe, along with the motor.)

You may find that a slightly oversized drill-bit works better for mounting the motor, as the hand-tool is not as accurate as the power-pillar drill few of us have in the garage. In the past I've used a half-millimetre over-size and have yet to experience an in-flight separation of any sort. Use the regular bit first and then adjust whichever bolt-hole(s) are off-centre, rather than use an over-size bit at the outset.

Bored Meeting

At 16:00 I halt work on the factory floor and call a board meeting for an interim risk assessment. With my engineering cap on I get quite exercised, refusing to commit the lives of mannequins to 'Outer Somerset' in a plastic spacecraft which does appear to flex that bit more than 1/16th alloy. Flex is good, flutter is bad in aerospace and the drone is no exception and especially as it is scaled up. If the flight computer detects vibration that it tries to dampen and that vibration harmonises with its clock-speed, then it can exacerbate rather than cure the problem... like applying a force to a child on a swing too late, so as to speed it up rather than slow it down.

Any number of experimental electrical aircraft on YouTube show how many prototypes fly better with stabilisation turned off. The modern eVTOL is like an orchestra that is sublime when synchronised but unbearable when not. Unlike a concert orchestra, however, aircraft suffering 'divergent' stability are prone to break up.

As CEO with no hat on, I point out to myself that air transport at the end of the day is about 'bums on seats' even though strictly speaking we've no seat to consider. Were I Elon Musk I would have fired me by now, but instead we come to a compromise in the best spirit of Christmas present. We shall build a back-up rig of the same size but in alloy, to which we can transfer the electricals as necessary and have another go.

There is nothing new in this, any number of prototypes often accompanying the design and testing of aircraft (until relatively recently when it could all be done on computer). Wikipedia says no less than six Concordes were built for development and another fourteen intended for service, whereas nowadays there may be just one or two prior to several thousand entering service.

Interestingly Boeing's Dreamliner experienced problems with (a) a new type of battery (b) supply-chain issues related to rivets (c) new methods of working in carbon-fibre composite instead of aluminium alloy. Echoing that, our prototyping has also suffered from supply-chain issues delaying the mannequin's shoes, the process of learning with different materials and getting to grips with the lithium-based batteries.

I'll admit that issues of these sort won't be having quite the same consequences as the 737 Max had on Boeing's then-CEO, though.

In aerospace, small can be beautiful.

Half-Scale Build #91

Here's the bracket being riveted to the inside edge of the airframe. It is better for any overhang to be located inside the outline of the airframe as it makes handling, storage and transport that much easier. Be careful not to let the drill-bit impinge on the other side of the extrusion, however, as it is likely to crack and need patching. New material requires new methods but are worth the love and tenderness in the end; for example the new generation of airline cabins are a plastic composite and as a result are lighter and stronger ~ this in turn reduces fuel usage and provides a more comfortable cabin pressurised to a lower altitude.

Half-Scale Build #90

We're going to mount the motor four-square on the bolt-holes, straddling the airframe as well as a 1" angle-alloy. These angle sections come in plastic but I'll use left-overs for our build. A pain-in-the-ass feature of the U7 motor is the fact the axle appears below its base, which will need a shim or washer around the bolts to clear the frame.

Looking at the picture below I've flipped the motor over in order to trace the outline, as we'll cut the motor-mount to suit. These babies are going to run HOT according to the manufacturer's own data, which is why they're top-mounted to benefit from the downwash from each propeller. Notice that a pair of bricks prove ideal for the exercise and these were available from my local scientific instrument store ~ and always insist on PILOT marker pens for aerospace builds like this.

Note also what it says on the tin: a 280KV motor runs at 280 rpm per volt. This is the slowest running of the three U7 variants and designed to drive a big ol' lazy 22" prop at a lower speed but higher (and hotter) torque. The batteries we collected yesterday are advertised at 3.70 volts apiece and are likely to die if run down below around 3.00 volts, so you're looking at an operating range of 3.20 and 3.70 volts for commercial ops with passengers.

With the crash-test dummy (sorry, mannekin) on board however we'll be pumping iron in the form of 4.20 volts per cell... think TOGA on your Airbus with its ten minute limit. Therefore we've a total of 25.20 volts down the line, which is 1.20 volts over the 'book' figure for max thrust, our own Tmax. Thus 25.20 times by 280KV is a theoretical RPM of 7056, at which speed the propeller tips are turning at 462 m.p.h. according to back-of-the-serviette calculations: well inside the subsonic regime and the reason slower props run quieter whilst optimising thrust.

Half-Scale Build #89

The 36" rig weighs in at 2.10kg (4.60lb), nearer the mark for our choice of motors. The plastic deforms a little around the bolts but a bit of flex and deformation comes with the aeronautical territory. The 737s I flew often had ripples in the skin around the rear baggage hold (which is what they did) and the fastest jet in the shape of the Blackbird used to leak fuel at the seams.

The material is less forgiving than alloy when it comes to metal-bashing in the form of stripping and re-building prototypes, but then that won't be an issue in the fabrication of a beta-product. Meantimes prior to it's removal to the paint-shop (aka garage) we'll look at fixing the motor-mounts for those mighty 600w units.

Half-Scale Build #88

Sinclair and Rush have the three-metre extrusions delivered first thing this morning as it turns out Santa had dropped the previous down the wrong chimney. To optimise the use of these sections I've run with the 36" frame and 12" centre-body converted into metric measures, and you'll find the optimum procedure is to cut each length in half and then divide the remaining 1500mm into lengths of 580mm and 920mm apiece.

Thus two of the three-metre lengths will produce the entire frame, as seen here. One advantage of a switch to plastic, aside from the cost and weight savings, is that these extrusions come in white, which requires only a top-coat to render in Post Office red, or black which is suitable for drones 'as is'. In each event therefore we move closer to a consumer product.

The tube-connectors are a tight fit, nonetheless manageable for anyone with a rubber mallet and a tub of vaseline ~ stop the sniggering NOW please, not big nor clever. The M6 threaded tube-inserts to terminate the cantilevers are a push-fit but are unlikely to need reinforcing with pop-rivets. in fact there are nylon M8 inserts too, so that everything seen here could be 100% plastic. (Ed. If you think it's a good idea, ask your local turtle.)

Using a Mark 1 eyeball and averaging four measures, a 6mm drill-hole at 607mm from the end of each perimeter section (excluding connectors) should work. Meanwhile for the cantilevers, 310mm from the outboard ends (excluding inserts) works equally well. Plastic flexes even more than alloy, and therefore corrects any errors in measurement at the prototyping stage, where we are working to nearest millimetres rather than microns.
